Tube ice machines (TU Series)

Tube ice is mainly used for consumption, has a hollow tube shape and is transparant, hard and powderless. There are several possible dimensions for Recom’s tube ice machines. Our machines are made for industrial application and have been designed to produce fresh and clean tube ice in a trouble free manner. Compared with flake ice, tube ice has a longer melting time.

Details

Capacity 1T / 3T / 5T / 10T / 15T / 20T / 25T / 30T / 40T / 50T /
  • Produces ice in tube shape with outer dimensions of 22, 29, 35 & 41 mm
  • Parts contacting the water are made of stainless steel SUS304 or SUS316
  • Refrigerant R448, R449 & R507

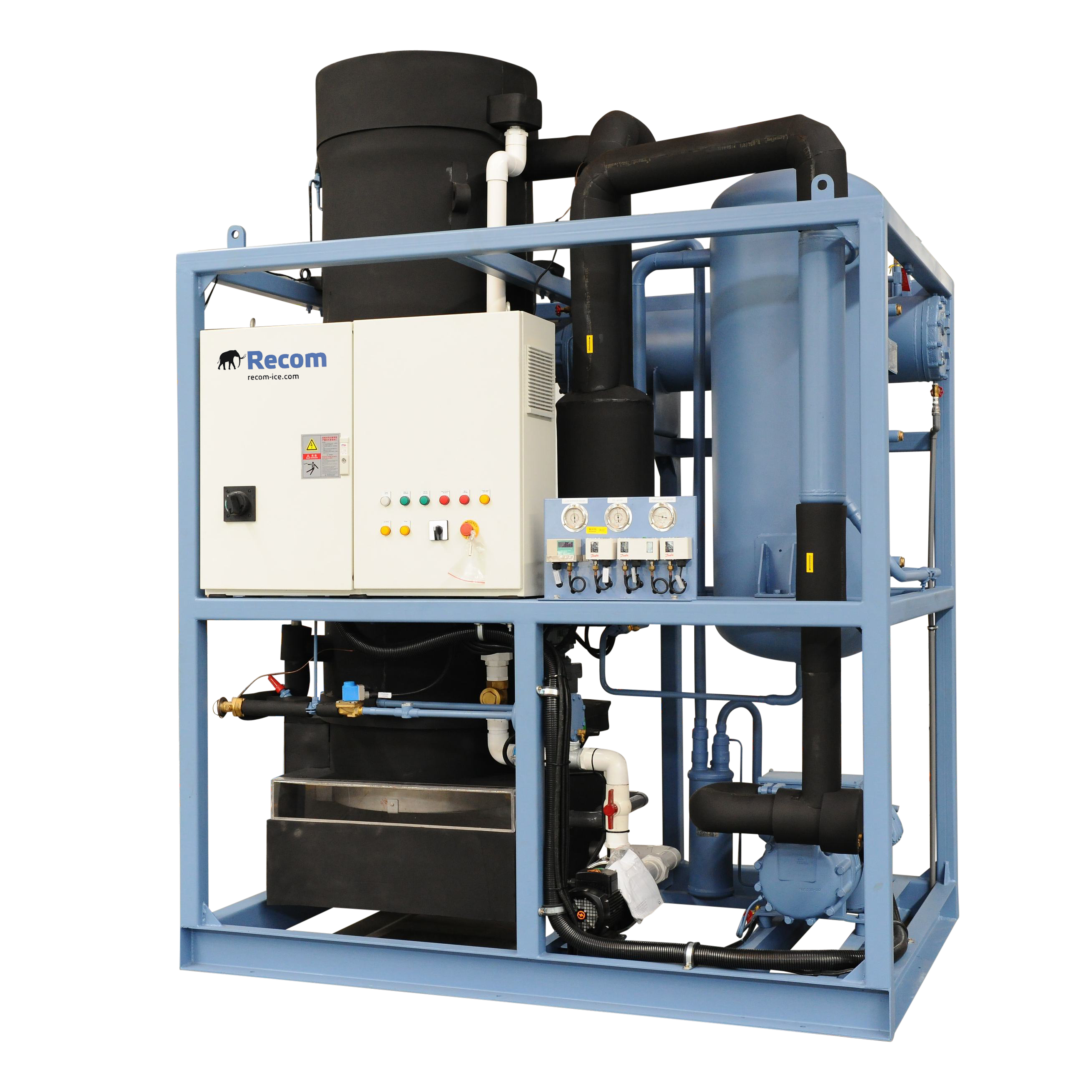

Recom TU100

Specifications

Production capacity 1T/24h
Refrigerating capacity 5.52 kW
Water consumption 0.046 l
Power consumption 4 kW
Approx. ship weight 800 kg
Approx. dimensions 1320 x 924 x 1700 mm
Download schematic
Production capacity 3T/24h
Refrigerating capacity 16.56 kW
Water consumption 0.138 l
Power consumption 9 kW
Approx. ship weight 1.200 kg
Approx. dimensions 1550 x 925 x 2210 mm
Download schematic Download
Production capacity 5T/24h
Refrigerating capacity 30 kW
Water consumption 0.23 l
Power consumption 16 kW
Approx. ship weight 1.500 kg
Approx. dimensions 1600 x 1200 x 2200 mm
Download schematic Download
Production capacity 10T/24h
Refrigerating capacity 60 kW
Water consumption 0.46 l
Power consumption 32 kW
Approx. ship weight 2.500 kg
Approx. dimensions 2300 x 1400 x 3098 mm
Download schematic Download
Production capacity 15T/24h
Refrigerating capacity 90 kW
Water consumption 0.69 l
Power consumption 45 kW
Approx. ship weight 3.500 kg
Approx. dimensions 1550 x 1440 x 4080 mm
Download schematic Download
Production capacity 20T/24h
Refrigerating capacity 120 kW
Water consumption 0.92 l
Power consumption 64 kW
Approx. ship weight 6.400 kg
Approx. dimensions Negotiated
Download schematic Download
Production capacity 25T/24h
Refrigerating capacity 150 kW
Water consumption 1.15 l
Power consumption 80 kW
Approx. ship weight 7.200 kg
Approx. dimensions Negotiated
Download schematic
Production capacity 30T/24h
Refrigerating capacity 180 kW
Water consumption 1.38 l
Power consumption 96 kW
Approx. ship weight 8.200 kg
Approx. dimensions Negotiated
Download schematic
Production capacity 40T/24h
Refrigerating capacity 240 kW
Water consumption 1.84 l
Power consumption 125 kW
Approx. ship weight 9.800 kg
Approx. dimensions Negotiated
Download schematic
Production capacity 50T/24h
Refrigerating capacity 300 kW
Water consumption 2.3 l
Power consumption 150 kW
Approx. ship weight 12.000 kg
Approx. dimensions Negotiated
Download schematic
